More info

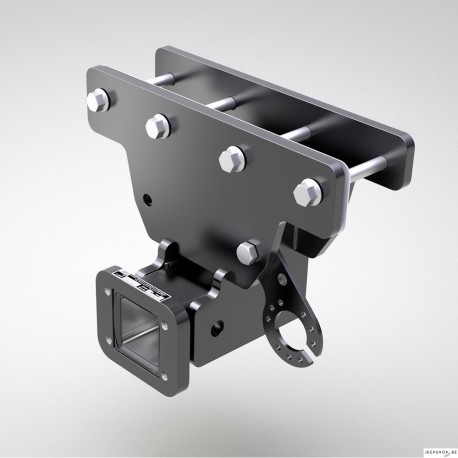

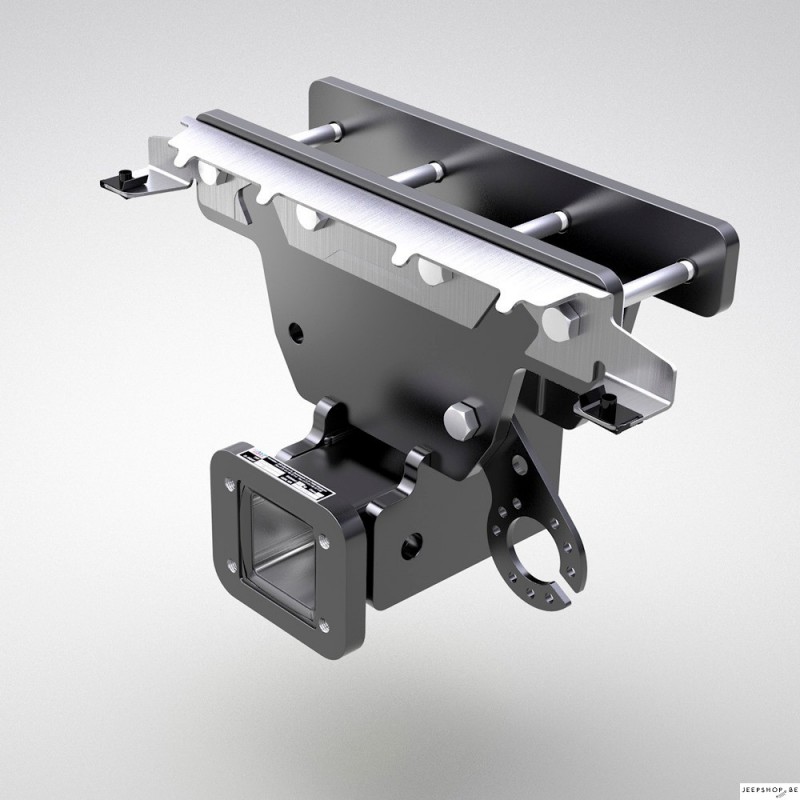

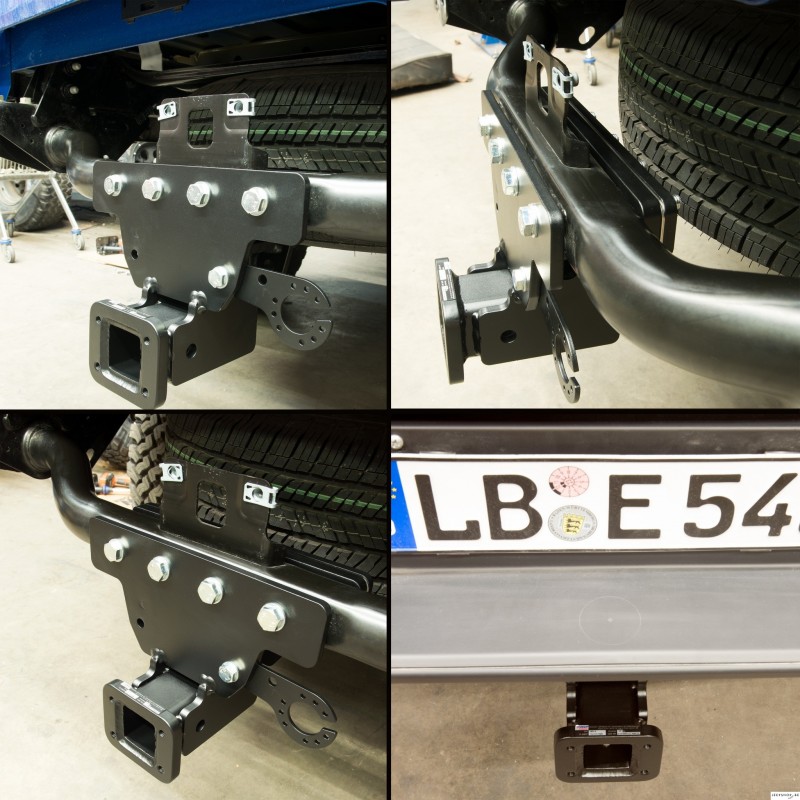

The new ASP trailer hitch is a further development based on the tried and tested 1501 AHK. We have now completely redesigned it to match the new Wrangler JL using many years of experience, so it now fits the Wrangler JL and the JK with all engine variants.
Thanks to various tested mounting points, the hitch can be used with the most common ball heads as well as with the US insert.
This means it will fit your Wrangler with all possible wheel and tire combinations and lift kits.
Your advantages:
- Mounting option for the most common 4-hole ball heads with mounting dimensions 83x56mm and M10 thread
- Mounting option for the 2" US insert
- Solid, one-piece welded construction with 10mm thickness and a 15mm thick mounting flange
- E-approved, so no registration necessary.
- A bumper retaining plate is included for the JL, which is not the case with other hitches on the market. In this case, the original part always has to be adapted.
- Special shape, so cutting out the AdBlue tank is no longer necessary on JL Diesel.
- Manufactured and powder-coated in Germany
- Maximum values in the passenger car range:
3500 kg maximum towing capacity
160 kg nose load
D-value 17.2 kN (17.17)

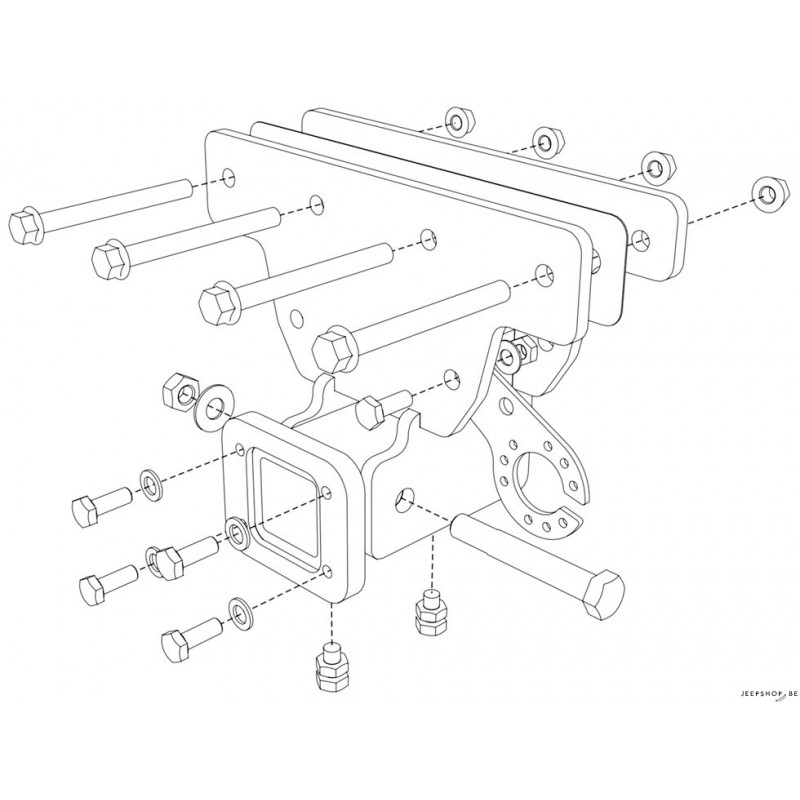

This part number contains:
1x ASP towing bracket
1x bracket for the electrical kit
1x mounting material
Thanks to various tested mounting points, the hitch can be used with the most common ball heads as well as with the US insert.
This means it will fit your Wrangler with all possible wheel and tire combinations and lift kits.
Your advantages:
- Mounting option for the most common 4-hole ball heads with mounting dimensions 83x56mm and M10 thread
- Mounting option for the 2" US insert
- Solid, one-piece welded construction with 10mm thickness and a 15mm thick mounting flange
- E-approved, so no registration necessary.
- A bumper retaining plate is included for the JL, which is not the case with other hitches on the market. In this case, the original part always has to be adapted.
- Special shape, so cutting out the AdBlue tank is no longer necessary on JL Diesel.
- Manufactured and powder-coated in Germany
- Maximum values in the passenger car range:
3500 kg maximum towing capacity
160 kg nose load
D-value 17.2 kN (17.17)
This part number contains:
1x ASP towing bracket
1x bracket for the electrical kit
1x mounting material
